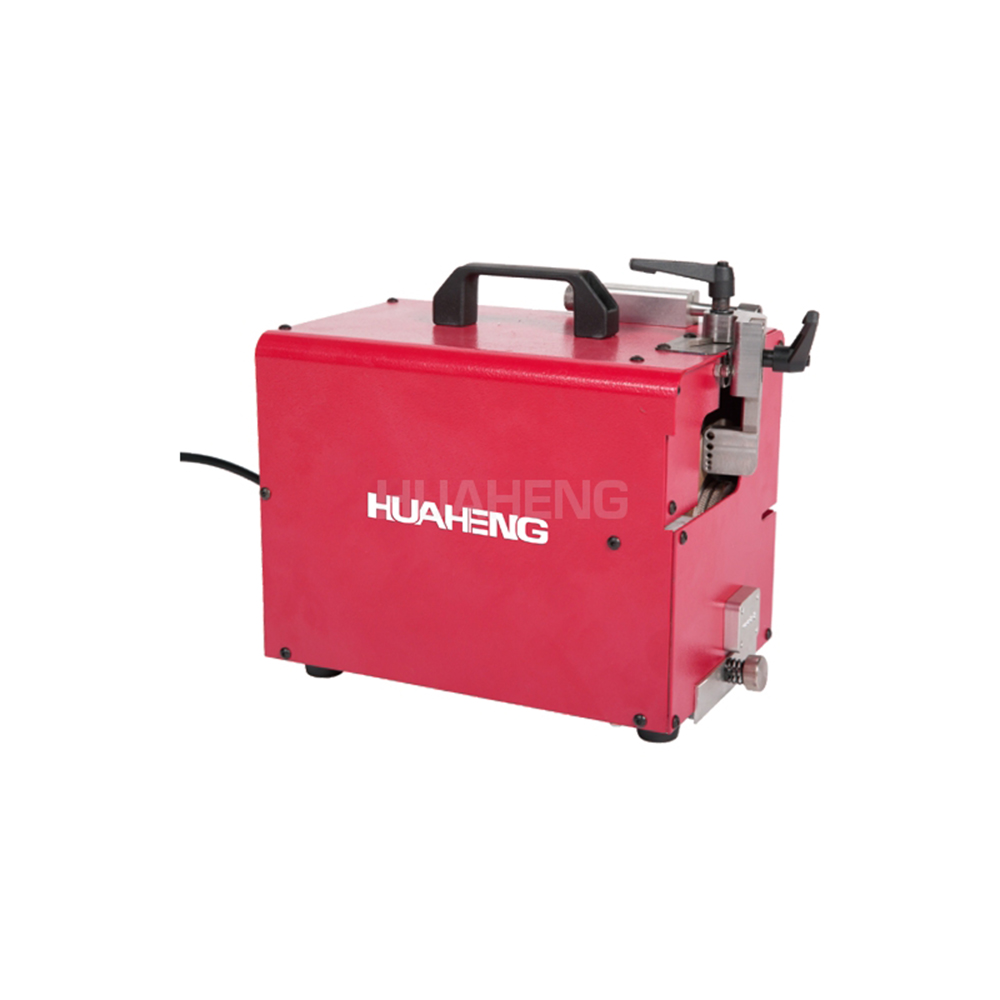

Desktop Tungsten Wire Grinder For Cutting And Cone Grinding

Name: Desktop Tungsten Wire Grinder For Cutting And Cone Grinding
Brand: HUAHENG
Price: 1 USD

Wholesale Desktop Tungsten Wire Grinder For Cutting And Cone Grinding from china suppliers

Brand Name : HUAHENG

Model Number : WMJ06

Grinding angle : 20°~60°

Grinding length : >30mm

Power : 250w

No-load speed : 2800rpm

Input power : 220V Single phase

Weight : 12kg

Contact Now

This equipment is designed for professional integrated cutting and pin grinding of tungsten electrodes. It is capable of grinding electrodes with various diameters and angles, and features a fixed-length cutting function. The operation is straightforward, making it suitable for a wide range of applications. It boasts a modern design with a simple structure, easy operation, and includes both length cutting and cone grinding functions. The lengths of the tungsten electrodes and the grinding angles are marked with scales for easy reference.

Desktop Tungsten Wire Grinder For Cutting And Cone Grinding

Technical parameter

Grindable tungsten electrode diameter	Standard(1.0 1.6 2.4 3.2 4.0) Matching(2.4 3.2 4.0 5.0)
Grinding angle	20°~60°
Grinding length	>30mm
Motor Power(w)	250
No-load speed (r/min)	2800
Input power(V)	220
Weight(KG)	12

Desktop Tungsten Wire Grinder For Cutting And Cone Grinding
